Catalina Scheduler
Outline
- SLURM hold jobs
- Submit a job
- Run a job
- External Scheduler
- Catalina Install
- Catalina Commands
SLURM
We want to disable the SLURM internal scheduler. We do this by configuring the Wiki interface of SLURM.
- edit /etc/slurm-llnl/slurm.conf
- edit /etc/slurm-llnl/wiki.conf
- restart slurmctld
slurm.conf
... SchedulerType=sched/wiki SchedulerPort=7321 ...
wiki.conf
AuthKey=<key>
SLURM Jobs Held
With the Wiki interface active, submitted jobs go into JobHeld (Priority=0). Now, we can use SLURM commands to start jobs.
SLURM Job
#!/bin/sh #SBATCH --time=10 #SBATCH --nodes=2 #SBATCH --tasks-per-node=8 /bin/hostname /usr/local/bin/srun -l /bin/hostname /usr/local/bin/srun -l /bin/pwd /home/kenneth/info/openmpi/install/bin/mpirun \ /home/kenneth/testprog/ring26 -t 10 -n 3 -l 100 \ -i 0.03125 -c 0 -s 0 /bin/sleep 900
Submit Job
/usr/local/bin/sbatch -o out_%j_%t r.script
Run Job
We can use the scontrol command to:
- specify which nodes are used by the job
- specify a non-zero Priority to tell SLURM to run the job
/usr/local/bin/scontrol update JobId=<job id> \ ReqNodeList=<nodelist> Priority=1
Query Job
Here's output from issuing the scontrol update command to a held job:
http://users.sdsc.edu/~kenneth/ipn.2010/workshop/simple1.txt
Simple Scheduler
Instead of doing this by hand, we can write a script to do it for us. In this case, a Python script:
Catalina Download
Download the latest tar ball from http://www.sdsc.edu/catalina
Catalina Unpack
Unpack the software into a build directory:
tar zxf catalina.tar.gz cd catalina
Set Env Variables
Configure Makefile
./conf.sh
Build and install
make make install
catalina.config
make config
Copy the catalina.config file to the install directory
Initialize database files
Go to the Catalina home directory:
cd <installdir>
./initialize_dbs
Starting/Stopping Catalina
Start the scheduler:
./start.ksh
You can also do
./set_config --key_value=state:running ./catalina_schedule_jobs --iterate
and this will print to STDOUT, staying in foreground.
Catalina Queries
Display the queue:
./show_q | more
Show reservations:
./show_res | more
Create a reservation
./set_res --user_list=testdemo,diegella \ --start=00:00_12/25/2010 --end=01:00_01/25/2011 \ --resource_amount=3 --mode=real
--feature_list=CPUs8,MEM32 can be used to restrict nodes
Note the res_id given for the reservation:
... reservation 996775412 created on 32 nodes with start_time 1001376000.0 for duration 3600.0 ...
Check the reservation:
./show_res --res=996775412 --readable --start \ --end --duration --job_rest --node_list
Create a system reservation
For 4 days from now, lasting 8 hours on all configured nodes:
./create_system_res --offset=345600 --duration=28800
Create a system reservation
For 3:31AM Jan 15, 2011 TZ time, lasting 8 hours on all configured nodes:
./create_system_res --start=03:31_01/15/2011 \ --duration=28800
System reservation
On 2 nodes:
./create_system_res --offset=345600 --duration=28800 \ --resource_amount=2
System reservation
On nodes popocatzin2, popocatzin3:
./create_system_res --offset=345600 --duration=28800 \ --node_list=popocatzin2,popocatzin3
Cancel a reservation
./cancel_res --res_id=<reservation id>

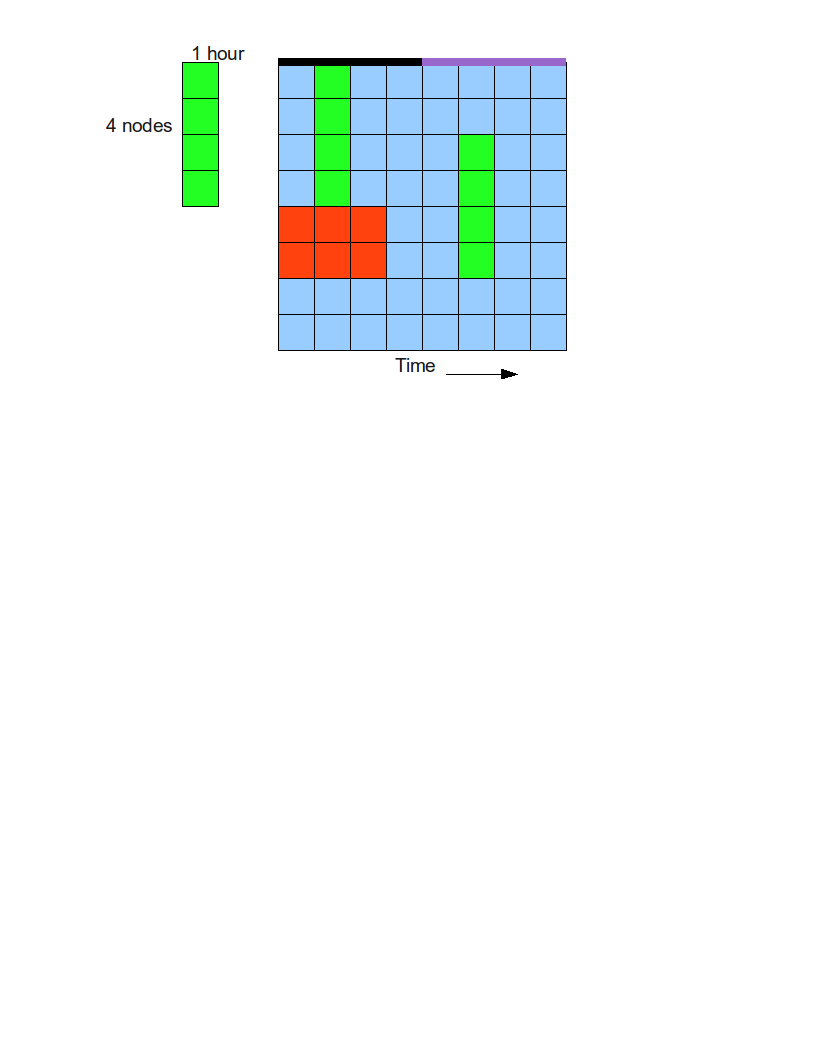

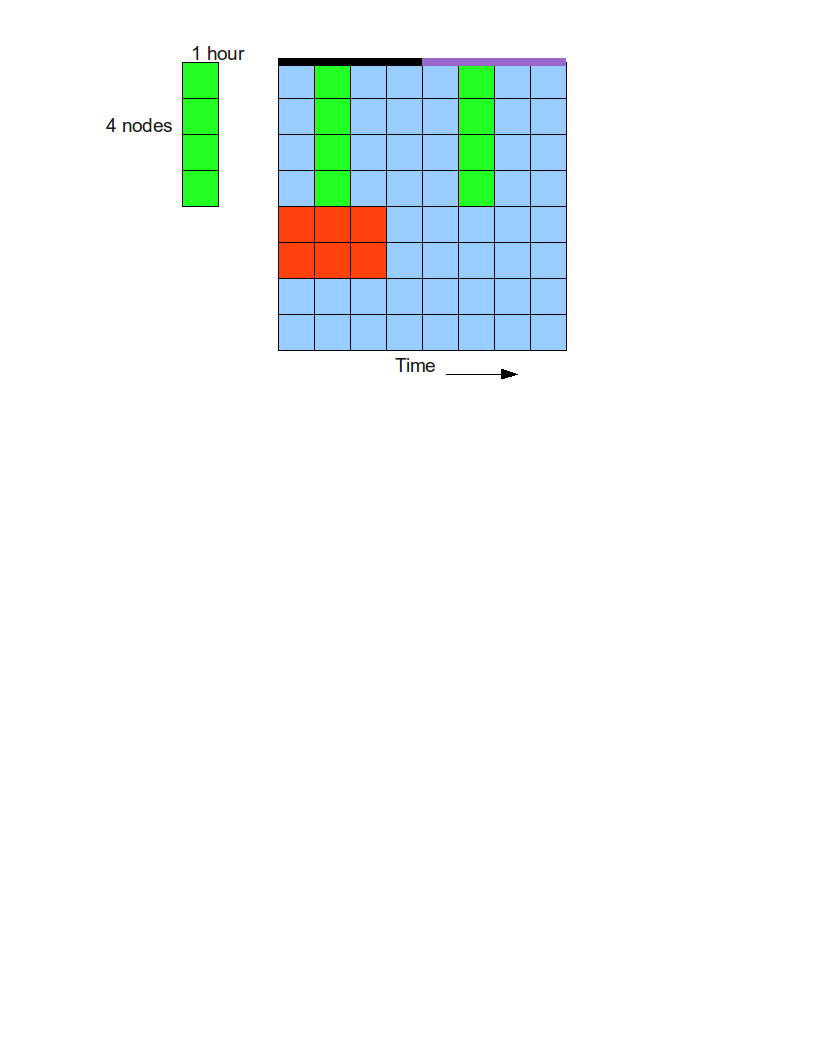

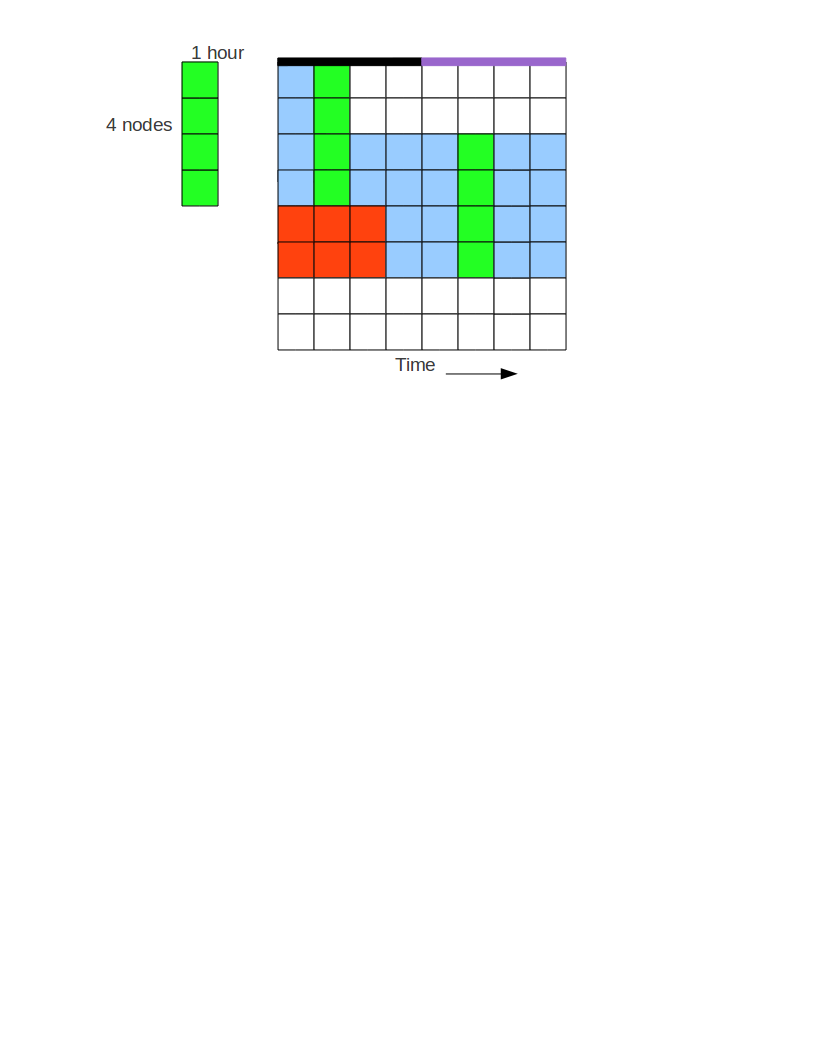

Standing reservations
- Reservations that are re-made on a regular basis
Standing reservations policy
Create the Interactive Standing reservation
./create_standing_res --start_spec='0 14 * * *' \ --depth=5 --duration=64800 --resource_amount=2 \ --job_restriction="if input_tuple[0]['job_class'] \ == 'trabajoslyn' and input_tuple[0]['wall_clock_limit'] \ <= 900 : result = 0" --mode=real
Check interactive standing reservation
./show_standing_res --job_rest
Create Standing res instances
./update_standing_reservations
Check for standing reservation instances:
./show_res --purpose --readable --start --end \ --job_rest | grep trabajoslyn
Delete a standing reservation
./cancel_standing_res --res=<standing reservation id>

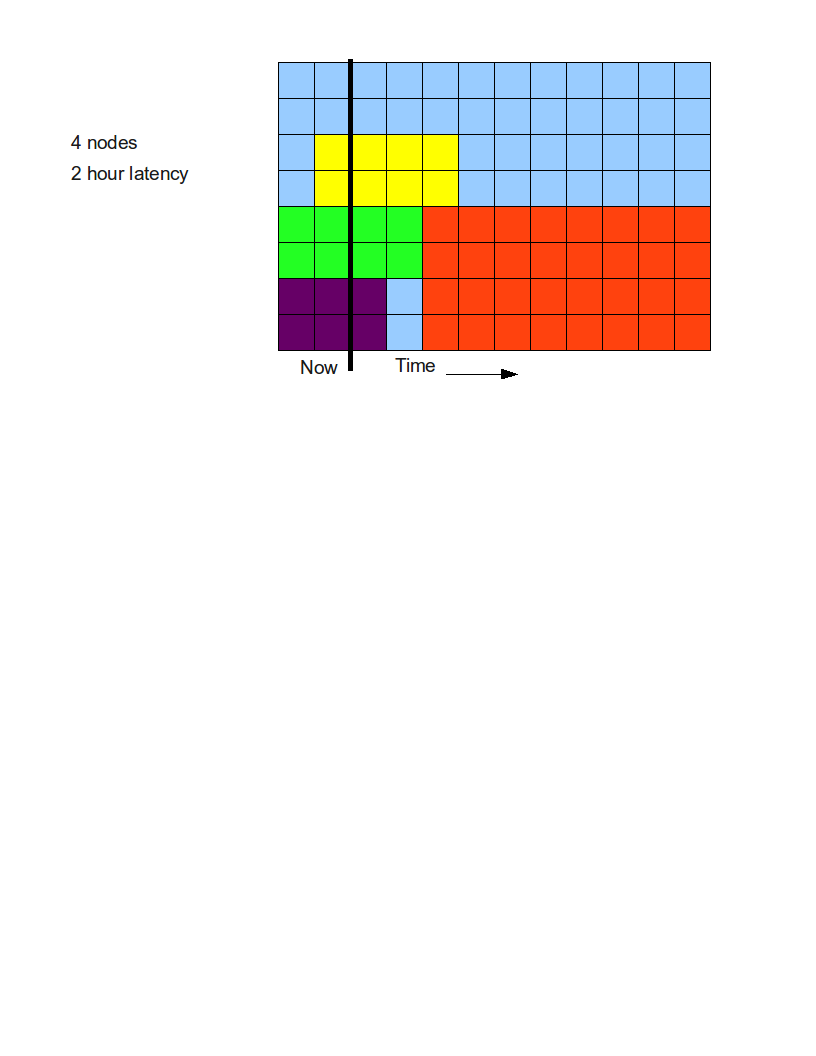

Shortpool reservations
- Guarantee that a fixed number of nodes will be available within a maximum configured wait time
- For important jobs, will provide assured queue wait time
Create a Shortpool Standing reservation
./create_standing_res --start_spec='0 14 * * *' \ --depth=5 --duration=64800 --resource_amount=2 \ --job_restriction="if input_tuple[0]['job_class'] \ == 'trabajoslyn' and input_tuple[0]['wall_clock_limit'] \ <= 900 : result = 0" --mode=real \ --latency=7200 --overlap_running=1

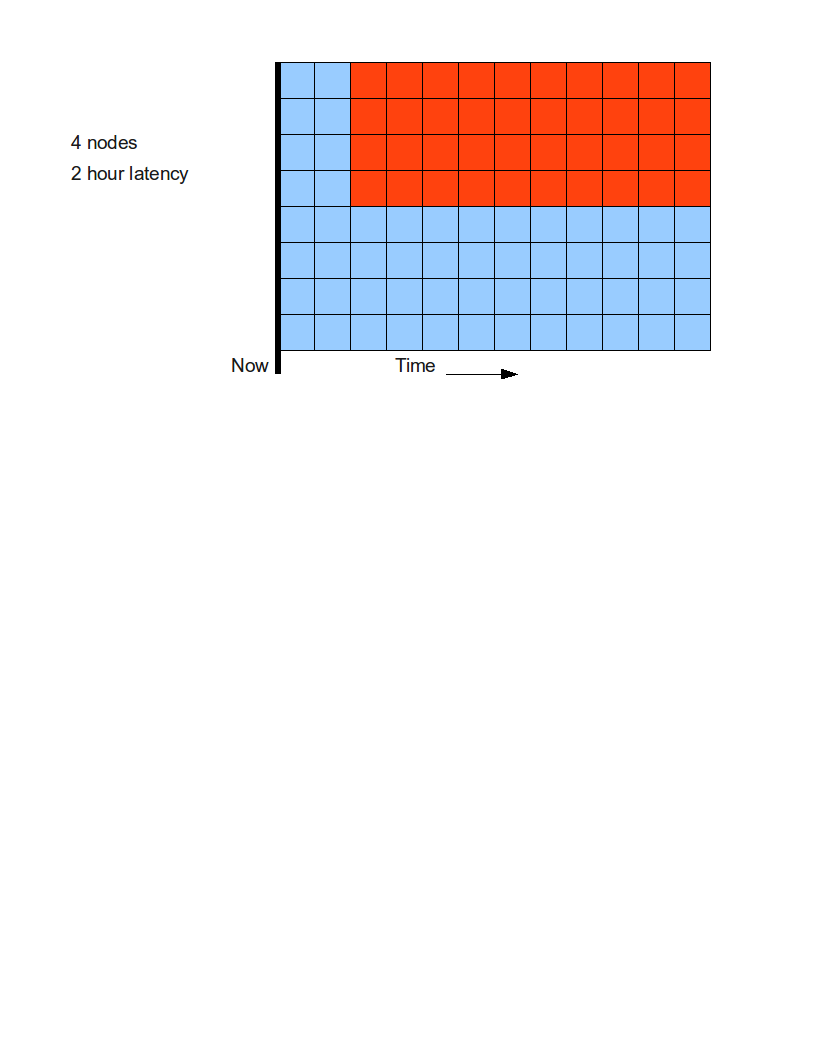

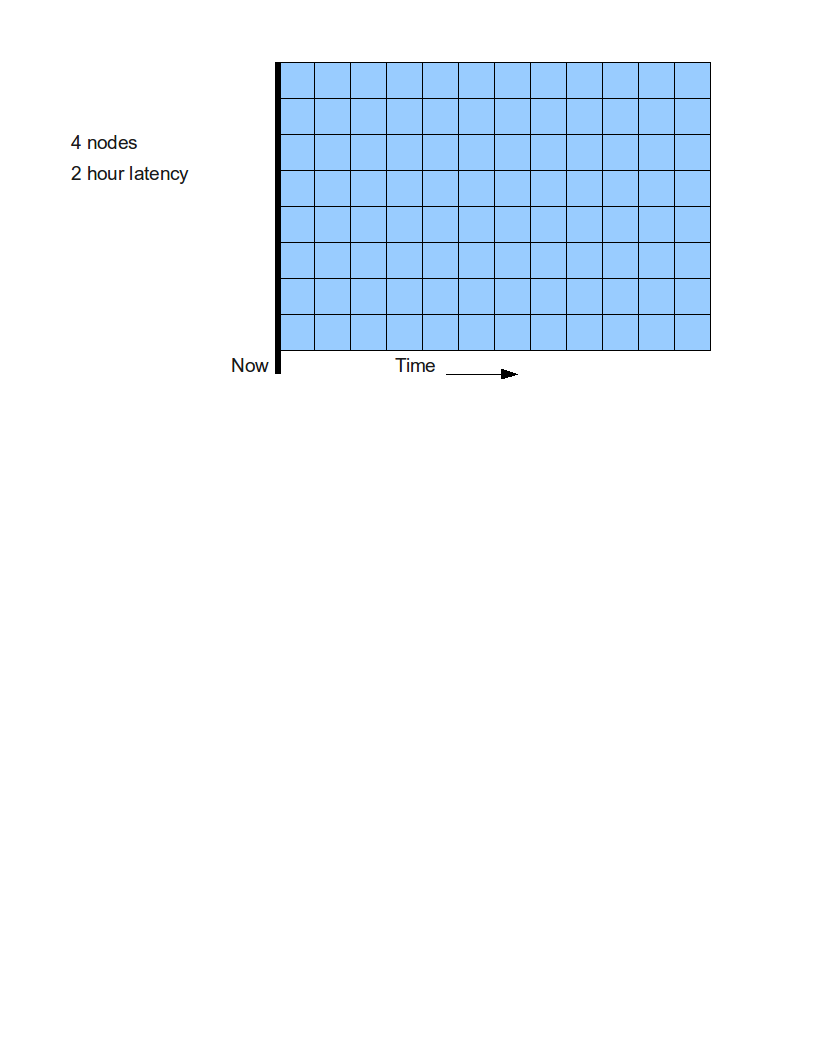

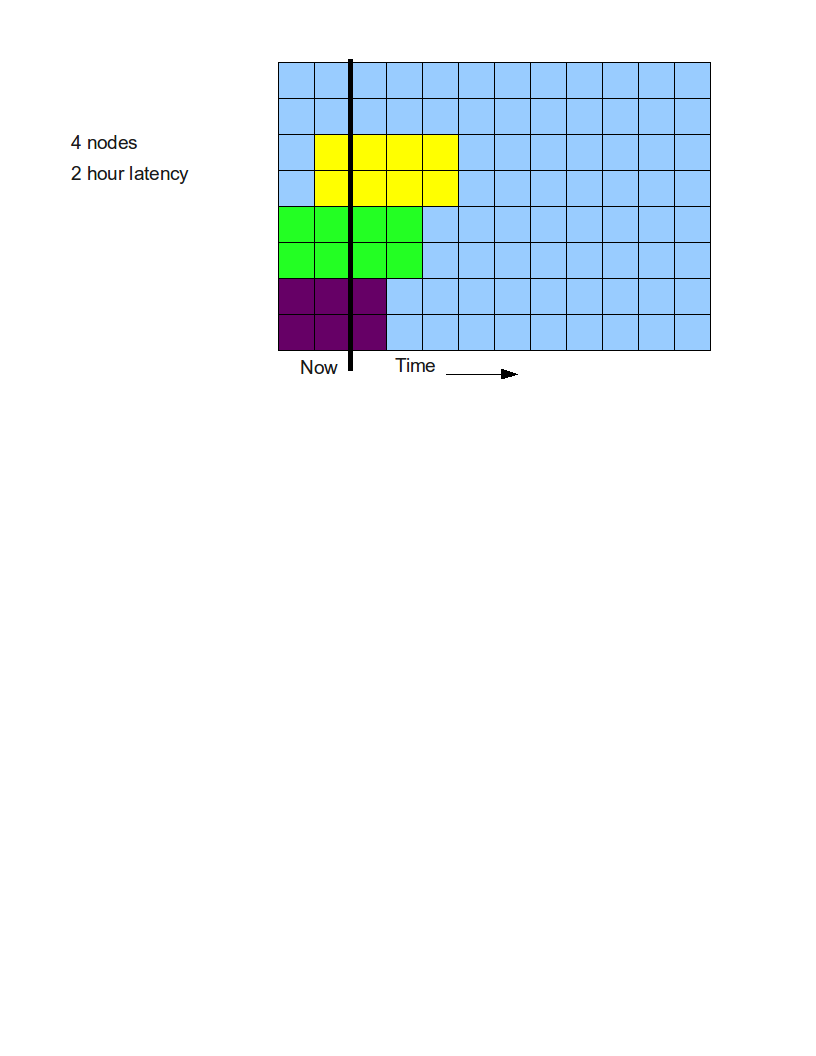

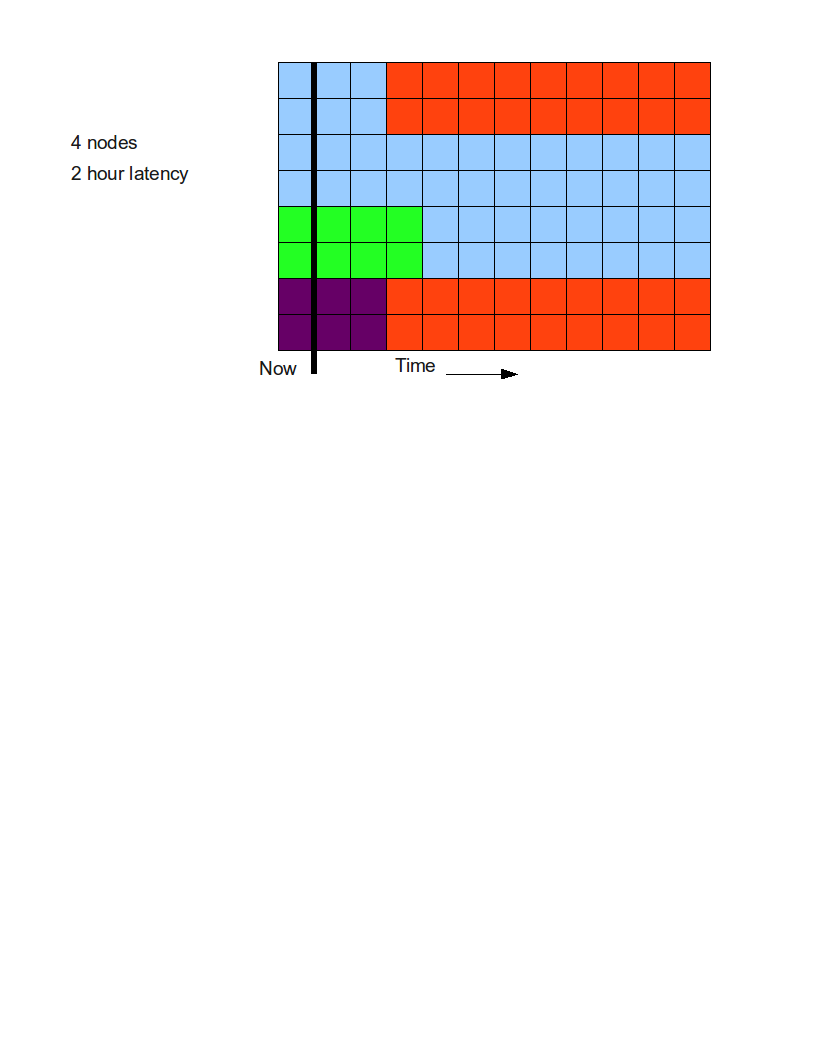

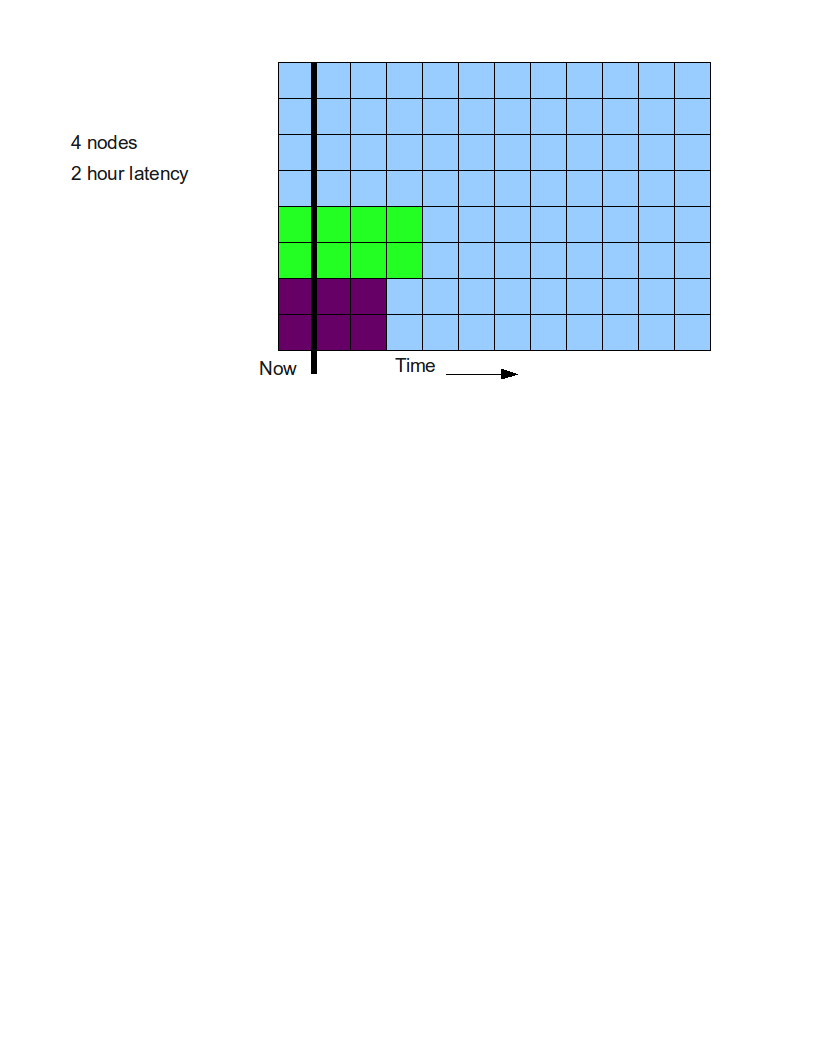

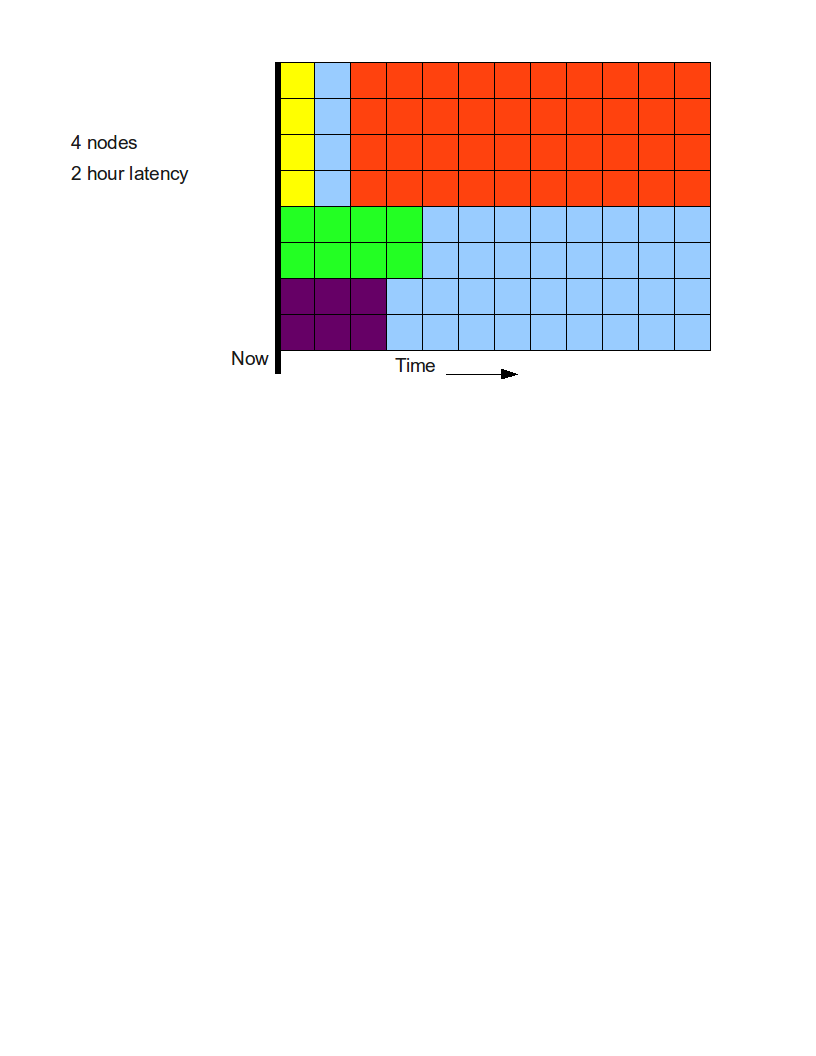

How does shortpool work?
Set system priority for a job
./update_system_priority --job=<jobid> \ --system_priority=10
Unset system priority for a job
./update_system_priority --job=<jobid> --system_priority=0
Show backfill windows
./show_bf
Show backfill windows
For 'legion' user, 'normal' class, 'met200' group, 'met200' account, '6' QOS job:
./show_bf --username=legion --class=normal \ --group=met200 --account=met200 --qos=6
Show reservation overlaps
./show_res --overlap --purpose --comment --readable \ --start --end
Show all reservations on popocatzin2
./show_res --nodegrep --purpose --comment --readable \ --start --end | grep popocatzin2
Stop scheduling
./stop.py

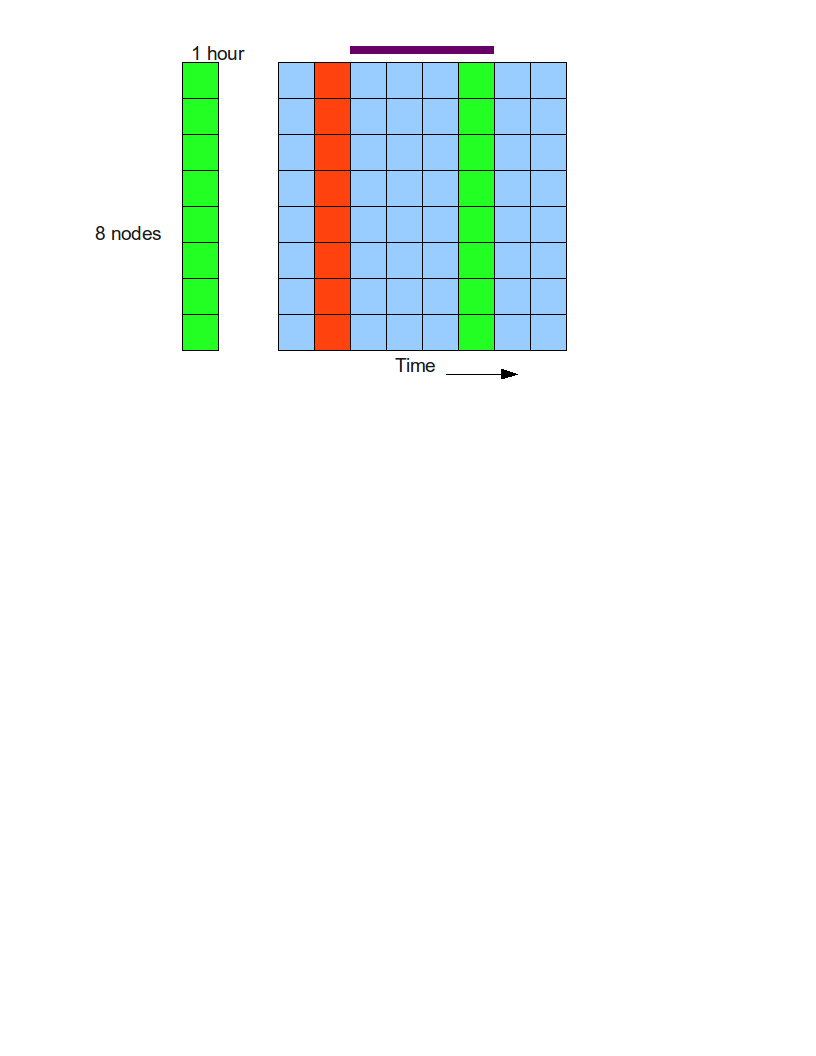

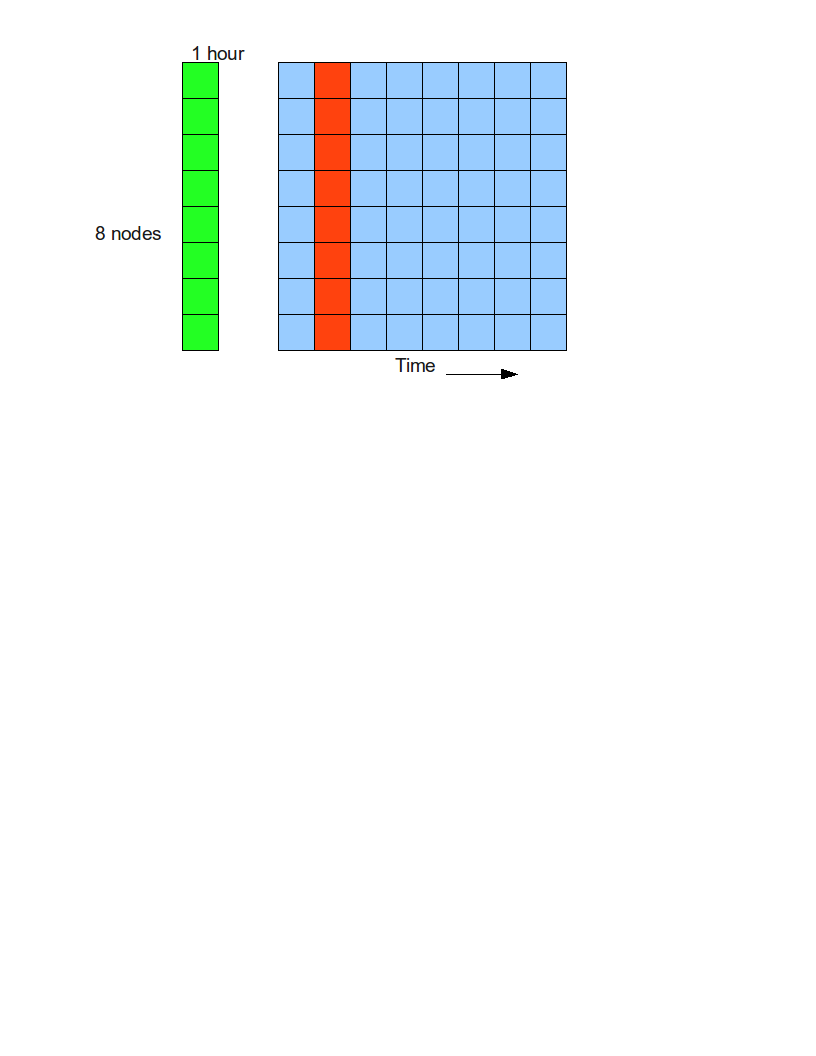

User-settable Reservations
- users allowed to create reservations
- user-settable reservations are limited by policies
./user_set_res --account=<account> \ --nodes=<number of nodes> \ --duration=<seconds duration> \ --earliest_start=<earliest start HH:MM_mm/dd/yyyy or \ epoch seconds> \ --latest_end=<latest end HH:MM_mm/dd/yyyy or epoch seconds> \ --email=<email address user@domain> \ [--sharedmap=<1#type:node_shared#cpu:1+memory:1>] \ [--featurelist=<comma-delimited list of node features>] \ [--qoslist=<comma-delimited list of allowed QOS>]
Create a user reservation:
user_set_res --account=sds122 --nodes=8 \ --duration=3600 --earliest_start=13:40_11/16/2010 --latest_end=23:00_11/16/2010 --email=<email address>
Cancel own user reservation:
./user_cancel_res <reservation id>
Bind the reservation to a job:
./user_bind_res <reservation id> \ <comma-delimited list of jobs>
Unbind the reservation from a job:
./user_unbind_res <reservation id> \ <comma-delimited list of jobs>
Bind the job to reservations:
./user_bind_job <job id> \ <comma-delimited list of reservations>
Unbind the reservation from a job:
./user_unbind_job <job id> \ <comma-delimited list of reservations>
Catalina Configuration
- Priority Calculation
- Policies - running - queued - soft - node-seconds - user-settable reservations
- Extensibility
Job Queue Priority
single queue
priority calculation
QOS
expansion factor
fairshare adjustment
max priority adjustment
Priority Calculation
priority = resource_number * Resource_Weight + wall_clock_time * Wall_Time_Weight + QOS_priority * QOS_Priority_Weight + local_user_float * Local_User_Weight + local_admin_float * Local_Admin_Weight + expansion_factor * Expansion_Factor_Weight + queue_wait_time * System_Queue_Time_Weight + submit_wait_time * Submit_Time_Weight + QOS_target_xf_value * QOS_Target_Expansion_Factor_Weight + QOS_target_qwt_value * QOS_Target_Queue_Wait_Time_Weight
QOS Priority
# each QOS has a starting priority value
QOS_PRIORITY_STRING = { '0' : 0L,
'1' : 10L,
'2' : 20L,
'3' : 30L,
'4' : 40L,
'5' : 50L,
'6' : 10000000000L,
'7' : 40L,
'8' : 40L,
'9' : 10000000000000000L,
'10' : 5L,
'11' : 10000000000L
}
Expansion factor
Expansion Factor
(requested time + system queue time)/requested time
Target Expansion Factor
1/(target expansion factor - current expansion factor)
Target Expansion Factor (example)
Fairshare interface
- fairshare_value for each job
- Configurable:
- TOTAL_AVAILABLE
- THRESHOLD_PERCENTAGE
- PENALTY_PERCENTAGE
Fairshare interface (calculations)
if fairshare_value / TOTAL_AVAILABLE > THRESHOLD_PERCENTAGE/100 priority = priority - (PENALTY_PERCENTAGE * priority / 100)
QOS Max Priority
# each QOS has a max priority
QOS_MAX_PRIORITY_STRING = { '0' : 100000000L,
'1' : 1000000000L,
'2' : 1000000000L,
'3' : 1000000000L,
'4' : 1000000000L,
'5' : 1000000000L,
'6' : 1000000000000000L,
'7' : 10000000000L,
'8' : 10000000000L,
'9' : 10000000000000000000L,
'10' : 1000000000000000L,
'11' : 100000000000000L
}
Maximum priority adjustment
priority = 1/
(target expansion factor - current expansion factor)
priority = (priority * max_pri * 10)/
(priority * 10 + max_pri)
Maximum priority adjustment (example)
Catalina Priority weights
FAIRSHARE_BONUS_WEIGHT=0 PENALTY_PERCENTAGE=0.0 TOTAL_AVAILABLE = 4800.0 THRESHOLD_PERCENTAGE=60.0 RESOURCE_WEIGHT=250.0 EXPANSION_FACTOR_WEIGHT=1.0 SYSTEM_QUEUE_TIME_WEIGHT=0.030 SUBMIT_TIME_WEIGHT=0.0000001 LOCAL_USER_WEIGHT=0.0 LOCAL_ADMIN_WEIGHT=0.004 WALL_TIME_WEIGHT=0.0 QOS_PRIORITY_WEIGHT = 425.0 QOS_TARGET_EXPANSION_FACTOR_WEIGHT = 1.0 QOS_TARGET_QUEUE_WAIT_TIME_WEIGHT = 1.0
Policies
- running
- queued
- soft
- node-seconds
- user-settable reservations
Policies (running)
# each QOS may have a max running jobs per user policy
QOS_MAXJOBPERUSERPOLICY_STRING = { '0' : 4,
'1' : 12,
'2' : None,
'3' : 2,
'4' : 2,
'5' : 2,
'6' : 4,
'7' : 2,
'8' : 2,
'9' : None,
'10' : 4,
'11' : 4
}
Policies (queued)
# each QOS may have a max queued jobs per user policy
QOS_MAXJOBQUEUEDPERUSERPOLICY_STRING = { '0' : 4,
'1' : 12,
'2' : None,
'3' : 4,
'4' : 4,
'5' : 4,
'6' : 4,
'7' : 4,
'8' : 4,
'9' : None,
'10' : 4,
'11' : 4
}
Policies (soft)
# each QOS may have a max running jobs per user policy
QOS_MAXJOBPERUSERPOLICY_STRING = { '0' : None,
'1' : None,
'2' : None,
'3' : None,
'4' : None,
'5' : None,
'6' : None,
'7' : None,
'8' : None,
'9' : None,
'10' : None,
'11' : None
}
Policies (node-seconds)
# each QOS may have a max queued node-seconds
per account policy
QOS_MAXNODESECQUEUEDPERACCOUNTPOLICY_STRING =
{ '0' : None,
'1' : None,
'2' : None,
'3' : None,
'4' : None,
'5' : None,
'6' : None,
'7' : None,
'8' : None,
'9' : None,
'10' : None,
'11' : 2764800
}
User reservation policies
USER_SET_LIMITS_DICT_STRING = {
'DEFAULT' : { 'instances_int' : 2,
'nodes_int' : 8,
'seconds_int' : 3600
},
'sys200' : { 'instances_int' : -1,
'nodes_int' : -1,
'seconds_int' : -1
},
'GLOBAL' : { 'window' : 14400,
'ABSOLUTE_LIMIT' : 28800,
'REQUIREDFEATURESLIST' : ['exclusive',] }
}
Global window policy

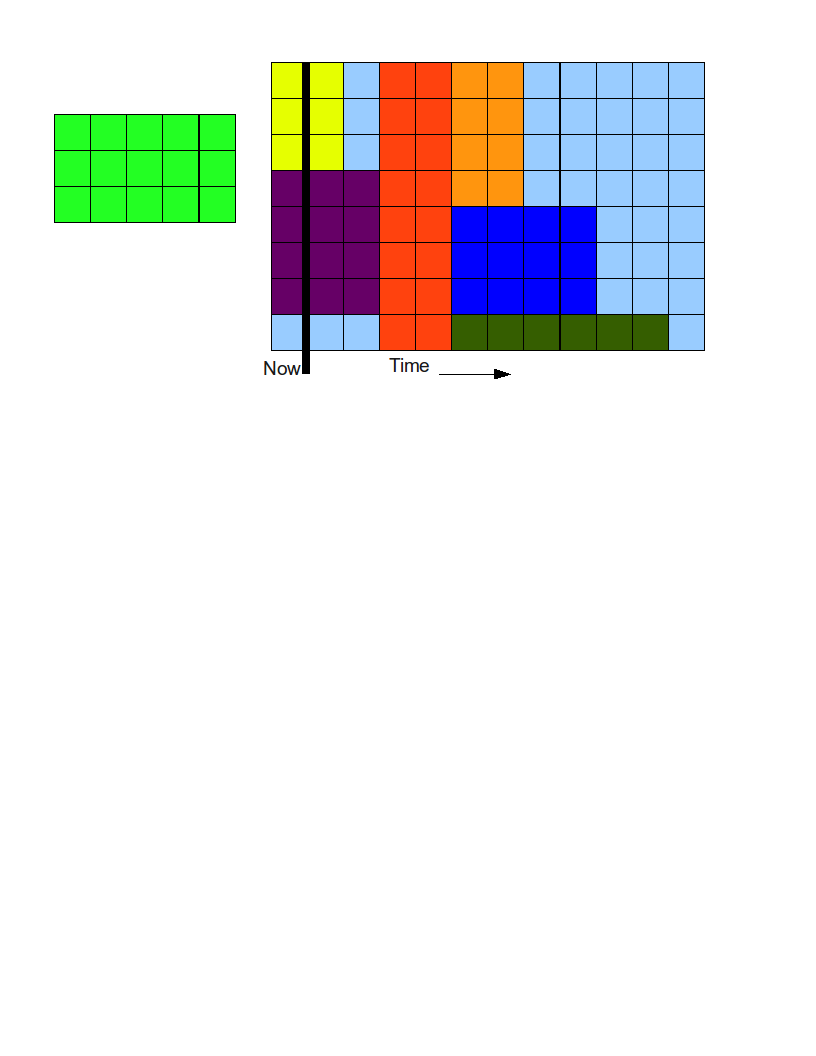

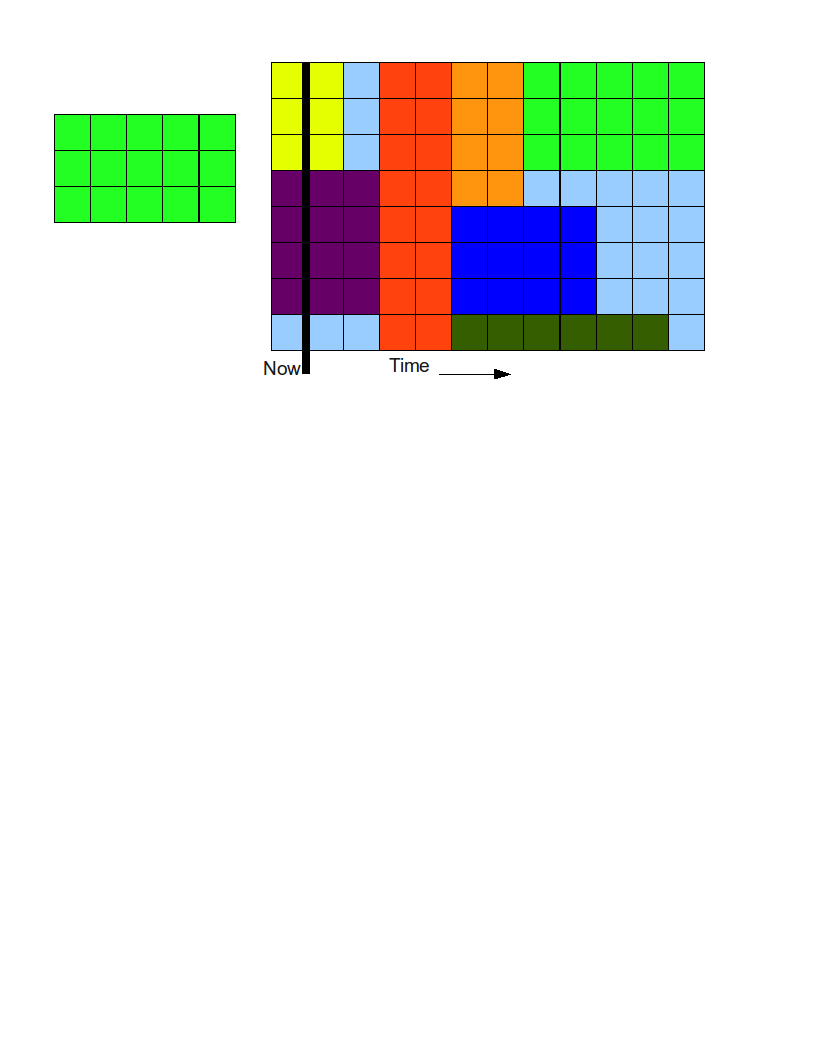

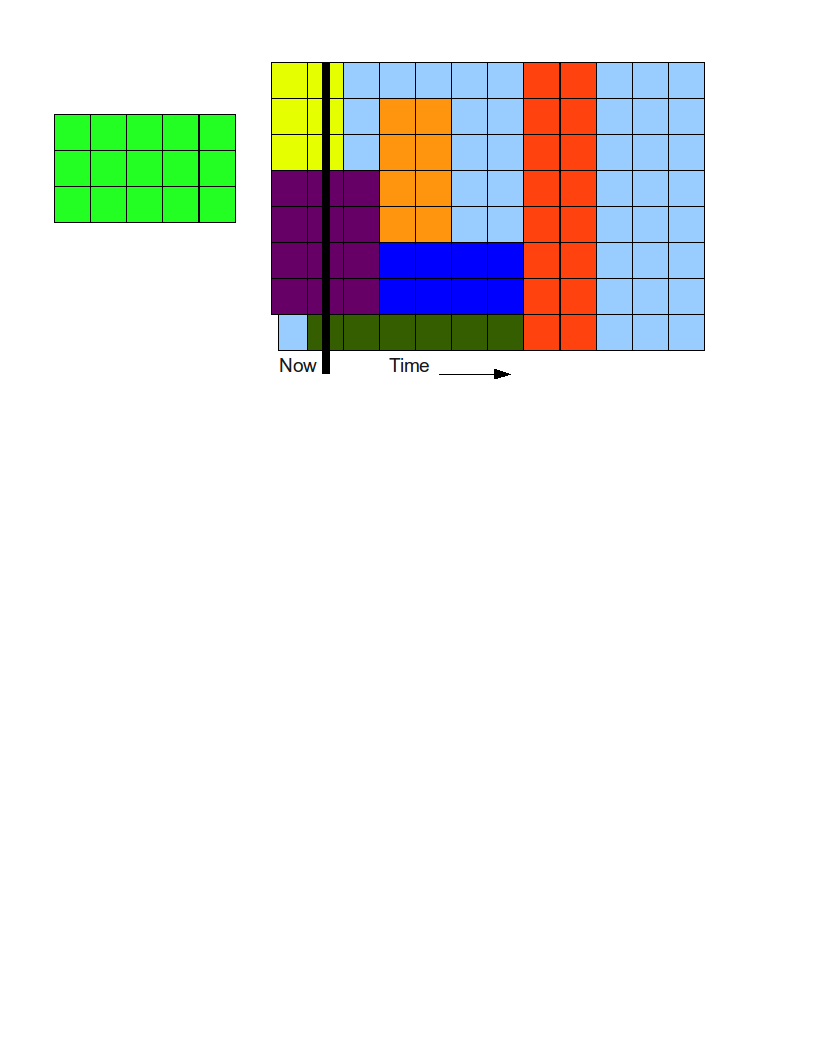

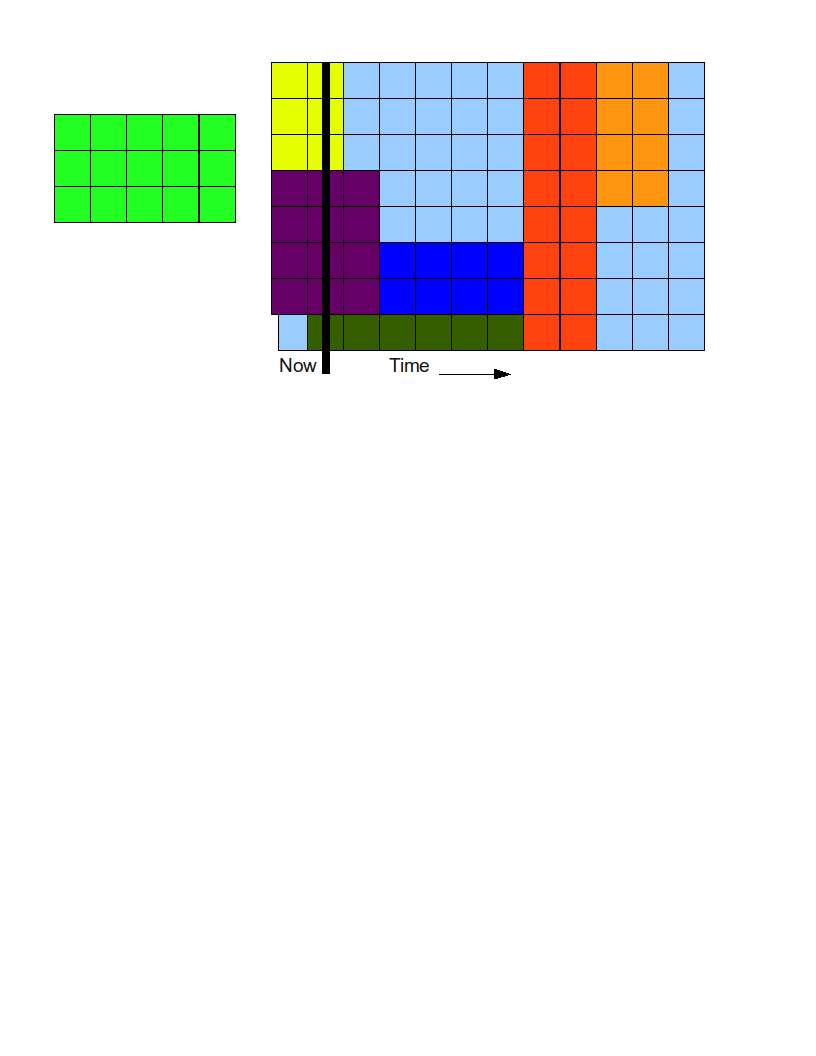

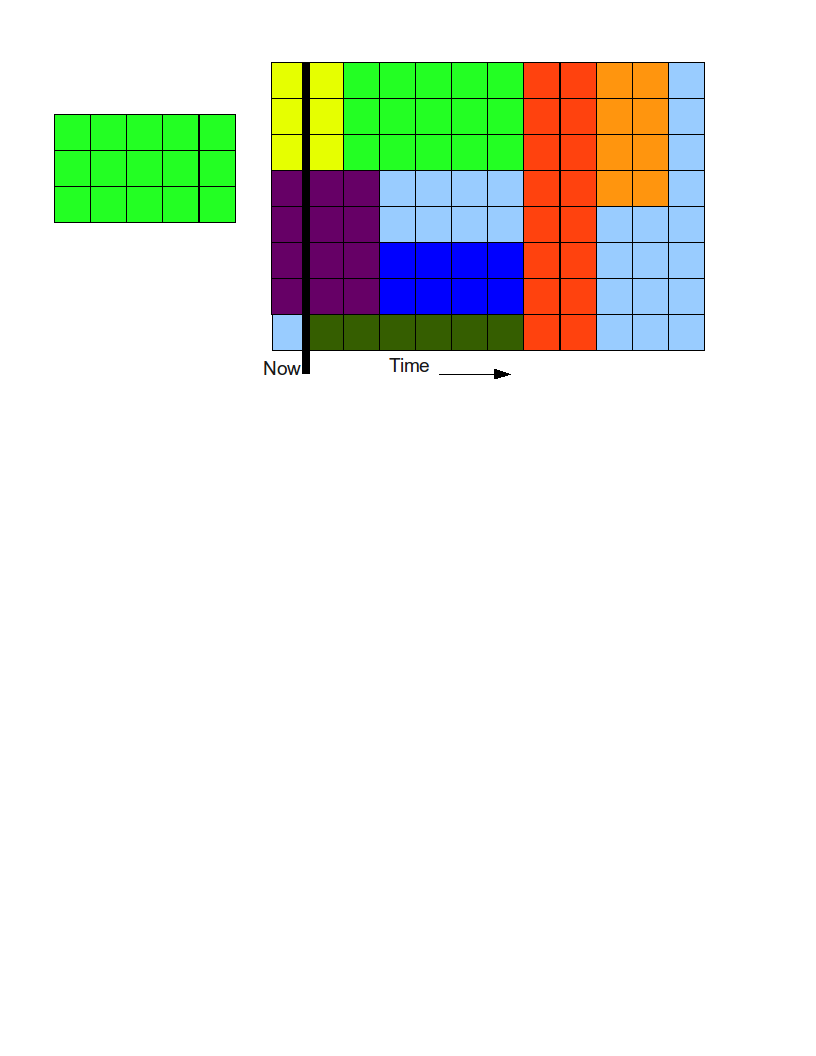

Queue Disruption
Extensibility
- Node selection
- Job filtering
- Conflict policy
Node selection
Python code, either on the command line or in a file, to be used to filter nodes for allocation to the reservation. input_tuple[0] is the node under consideration. Set 'result = 0' if the node is approved for allocation within the reservation. By default, nodes in Down, Drain, Drained, None, Unknown, or with Max_Starters == 0 are rejected. All other nodes are accepted.
Node selection (usage)
create_res [--node_restriction=<python code> | --node_restriction_file=<filename>]
Node selection (example)
create_res --node_restriction="if input_tuple[0]['State'] in ['Idle','Running']: result=0"
Job filtering
Python code, either on the command line or in a file, to be used to filter jobs for running within the reservation. input_tuple[0] is the job under consideration. Set 'result = 0' if the job is approved for run within the reservation. By default, 'result = 1', no job may run in the reservation.
Job filtering (usage)
create_res [--job_restriction=<python code> | --job_restriction_file=<filename>]
Conflict policy
Python code, either on the command line or in a file, to be used to return open time windows for each node. input_tuple[0] is a list of accepted nodes. input_tuple[1] is the new reservation, with attributes 'earliest_start_float' and 'duration_float' in epoch time and seconds input_tuple[2] is the list of existing reservations. return a dictionary. Node names are keys. A list of tuples containing (float epoch start of window, float epoch end of window, node name) are the values. By default, only time windows that do not conflict with the existing reservations are returned.
Conflict policy (usage)
create_res [--conflict_policy=<python code> | --conflict_policy_file=<filename>]
Debug
