Features and Requirements for an XML View Definition Language:
Lessons from XML Information Mediation
C. Baru, B. Ludäscher, Y. Papakonstantinou,
P. Velikhov, V. Vianu
1. Introduction
XML indicates a move towards viewing the Web as a big
semistructured database, consisting of multiple autonomous sites
which will be modeled around XML and sibling standards for
-
structure and ontology definitions (XML-Data, RDF, DCD,
namespaces),
-
APIs (most probably some extension of DOM),
-
source query capability specifications (see below),
-
other standards that may describe the transactional abilities of the sites,
and so on.
In such an environment a query language will serve for more than
"a souped-up version of X-Pointer" [Maier].
Our position focuses on the use of an XML query language as a
view definition language that drives XML mediator
systems. A mediator selects, restructures and merges information
from multiple autonomous sources/sites. It exports an integrated
XML view document. Possible applications of such mediator systems
are numerous (e.g., virtual shopping malls, virtual agencies,
...).
Section 2 gives a brief presentation of the under development
MIX (Mediation of Information using XML)
mediator system in order to illustrate the architecture and
the functionality of a typical mediator system. Section 3 presents
a list of issues and challenges that we have found in the course
of working on the MIX project and the XMAS (XML
Matching And Structuring) view definition
language.
2. The Architecture and Functionality of the MIX Mediator
System

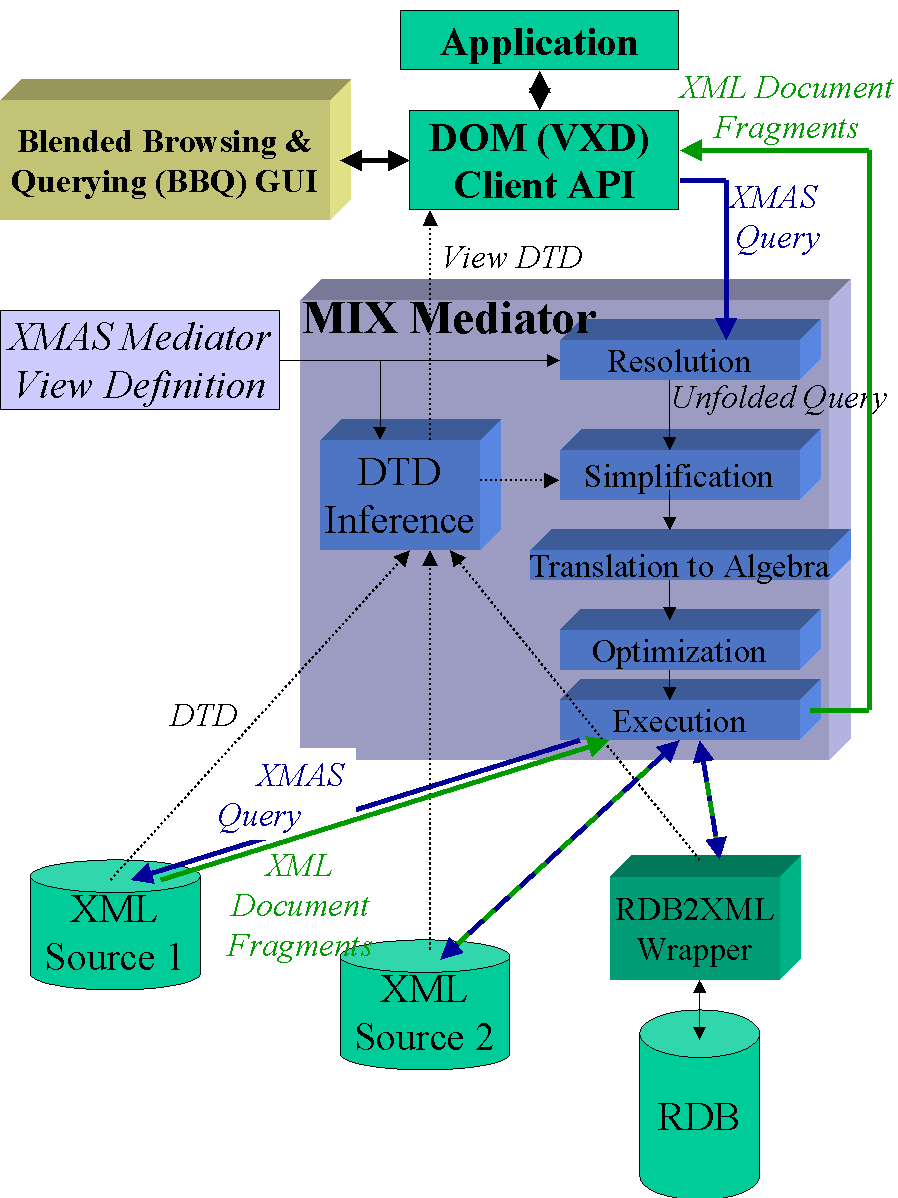

The figure below illustrates the architecture of the MIX mediator system. The
system accesses a set of XML sources, which are currently
information systems wrapped to provide (1) an XML view of their
data and (2) a set of XMAS queries that they can answer. (It is
likely that in the future there will be XML databases that require
no wrapping.) Conceptually, MIX exports an integrated view of the
source data. The view definition, provided by the view developer,
specifies how the source data will be integrated. Notice that the
MIX does not materialize the integrated view in advance.
During runtime, an application (which may be the BBQ GUI) issues a
XMAS query against the integrated view. The mediator decomposes
the client query into queries that are routed to the XML
sources. The sources generate and send to the mediator the query
results, which are XML documents. The mediator integrates them
into the client query result document.
Note that the client accesses the query result using our
home-grown version of DOM, called DOM-VXD (DOM
for Virtual XML Documents) . DOM-VXD
does not require a complete copy of the query result to be
materialized at the client site. In this way we can pipeline the
computation and delivery of the query result document and even
navigate into it.
3. What we have for XMAS and What we'd like a Santa "QL Committee"
Claus to bring us
There are numerous desiderata for a general purpose XML QL; see [Maier]
for an excellent overview. Here, we focus on first lessons learned
from designing and implementing the XMAS view definition language
for information mediation.
A recurring theme of the following
discussion is that expressive power comes at a price which may be:
-
inefficient query processing,
-
complex query processors,
-
inability to perform type inference, etc.
XMAS currently leans towards a conservative database approach
thereby delivering the benefits described in the sections
below. The cost is some limitations in the expressive power.
Undoubtedly, more powerful features (e.g., see Section
3.6); will also have to be encompassed in XMAS (and, in
general, any XML view definition languages). The language should
allow for; "graceful" scaling of the expressive power -- a
task that will not always be easy.
3.1 XML Faithfulness
An XML view definition should be faithful to XML, i.e., it
should always produce XML output. The immediate benefit for
mediation is that the view is no different from any other XML
document.
An ideal solution would be to have a language that
can never produce non-XML output. However, this approach may
compromise the expressive power of the language. A more viable
solution is to develop static analysis tools that can notify the
view designer of potential errors, i.e., cases where non-XML
output may be produced. Note that by controlling the complexity of
the language we will be able to develop effective static analysis
tools.
XMAS takes a middle-of-the-road approach: Its ability to move data
from a source's content to element names or attribute names
creates the possibility of non-XML output. This instance of
potential unfaithfulness can be caught using a trivial static
safety check.
On the other hand, XMAS avoids many sources of potential
unfaithfulness. For example XMAS has avoided (in so far!) the use
of Skolem functions, which can be a major source of
unfaithfulness. For example, they make it difficult to check
whether attributes of elements are unique. Nevertheless, Skolem
functions can deliver expressive power that cannot always be
substituted by the SQL-like group-by mechanism of XMAS.
3.2 Type Inference
Given descriptions of the source documents (such as DTDs, XML-Data
specifications, or DCDs), the mediator should be able to compute a
correct and precise description of the view. We have developed
algorithms [1] that
compute precise view DTDs from the source DTDs and the view
definition.
Again, the expressive power versus complexity
tradeoff is encountered: DTD inference is not possible for views
that move data from a source's content to element names or
attribute names; such views are allowed in XMAS. On the other
hand, the explicit group-by operator allows us to derive precise
types.
A closely related property is type conformance
of a view definition to a predefined DTD. Similar challenges
and tradeoffs with type inference appear in this case as well.
3.3 Closure Under Composition
A typical task for query processors (and not only XML ones) is the
following: Given (1) a client query q that refers to a view V and
(2) the query which defines V in terms of some source database(s)
S, derive a query q' that is equivalent to q and refers directly
to S. It is important for the simplicity and efficiency of query
processing that q' is expressed in the same language as q and
V. That is, the language should be closed under query
composition.
It is important to note that closure under composition
requires careful design of the query language. For example, one
can show that a query language that allows Skolem object-ids and
regular path expressions but does not allow any other form of
recursion, is not closed under composition.
In XMAS, closure under composition is achieved by employing a
group-by construct instead of Skolem functions. Once again, a
compromise in expressiveness leads to a desired property.
3.4 Order: Manipulating, Preserving, and Never-Minding it
XML has order. Elements are organized in lists, as opposed to
sets. However applications, in general, have different
requirements on the order issue. An XML query language should
address the following issues under a single semantics:
-
Order Preservation: By default the element order of the
input is preserved.
- Order Manipulation The view designer is able to
define a new order of elements. A typical task is the ordering
of elements using a ranking function (e.g., in the style of
SQL's order-by). Once again notice that extremely powerful order
manipulation mechanisms will compromise type inference and
closure under composition.
- Order Nondeterminism: Finally the view designer may
want to specify that order in the view is unimportant. In this
case he can specify that the order is nondeterministic thereby
leaving room for optimization.
The above policies deal with specifying an order for the
view. Similar considerations apply to checking the order of the
input elements. In this case XMAS' default is "don't care" about
the order of elements in the input. Conversely, if the view/query
has to put a condition on the order of input elements an
horizontal navigation regular expression can be used [1].
3.5 Query Processing: Put an Algebra in Your System
In order to apply similar optimization techniques as those
developed for relational databases, an XML query language should
have an equivalent algebra. An algebra will also facilitate the
implementation of pipelining/browsing as described in Section 2.
3.6 All Processing in One Language: The Challenge of
Structural Recursion
It is desirable to have a language that tackles all tasks required
in the mediation process. In this way we can avoid the impedance
mismatch caused by using multiple languages and we create extra
opportunities for optimization.
It seems that two language
paradigms have emerged in the XML querying context and they will
have to be reconciled:
-
The database paradigm has an underlying logic semantics and is
convenient for selecting and integrating objects. It has
recently been extended to allow navigational recursion in a
clean way. However it does not support (without the use of
hard-to-process general recursion) restructuring of "deep"
structures.
-
The functional paradigm, exemplified by XSL and now XQL, is
particularly suitable for "deep" transformations of XML
documents.
[UnQL]
shows a promising direction in bridging the two paradigms.
3.7 Describing the Query Capabilities of Sources
XML sources will only be able to support a subset of the queries
over the "schema" they export. For example, consider a site that
exports a flight information schema (say, DTD) but it only accepts
queries that specify a destination, an arrival, and a optional
price range. It is clear that a mediator system or, in general,
any agent that queries this source must conform to the set of
supported queries exported by this source.
So it is important
that mechanisms are developed for describing the set of queries
that are supported by a site [1].
3.8 Metadata
In communities such as, decision support, OLAP, and scientific
databases, the term "metadata" refers to auxiliary information
associated with defined data sets. For example, this may include
attributes that provide further information about the data,
annotations/explications associated with the data, and/or
computed/derived information related to the data. In general,
whether a piece of information is data or metadata depends
on one's point of view. In defining a virtual site, the view
specification mechanism must provide the capability to specify the
data as well as the metadata for that site. Once this distinction
between data and metadata has been made at the site level, this
information can be used in a variety of ways in the system. For
example, it can be used at the interface level to support
different query and presentation modes for data vs. metadata, and
it can be used at the data transport level to encode data
differently than metadata.
4. Conclusions
Information mediation poses a challenging set of requirements to
an XML query and view definition language. We discuss above
several important issues: XML faithfulness, type inference, order,
closure under composition, etc. A recurring theme is the search
for the right balance between expressive power, on the one side,
and efficiency and viability on the other.
