Load cell data filter.vi

Corrects noise inherent in the Omega load cell conditioner - filters out a 30Hz harmonic causing us grief.

This routine now depends on the semaphore being created and initialized by the NTCP control daemon. Otherwise it'll crash or hang!


Connector Pane

Load cell data filter.vi

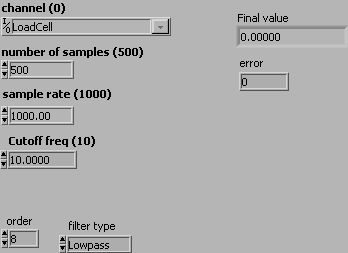

Front Panel

Load cell data filter.vi

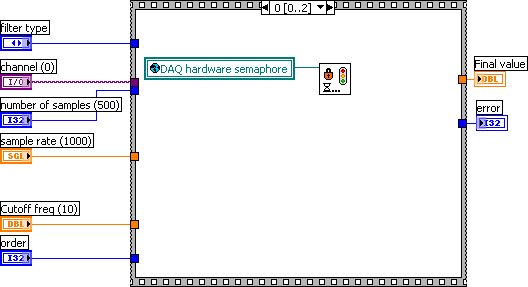

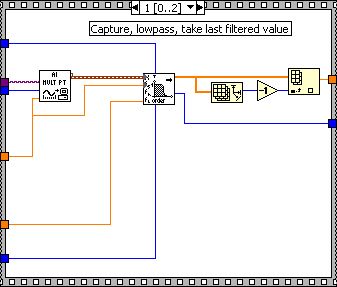

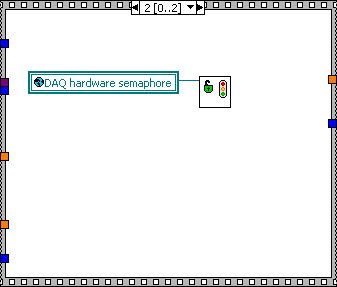

Block Diagram

Load cell data filter.vi

Load cell data filter.vi

Load cell data filter.vi
